VRHub

Type-C USB Hub with a host-side port

VRHub is a USB hub specifically designed for usage in standalone Virtual Reality headsets. The hub allows the headset to be equipped with additional peripherals while being tethered to a computer.

VRHub exposes 2x pads for Xiao ESP32 S3 Sense boards, allowing for integration with open-source eye and face tracking projects, such as EyeTrackVR and Project Babble. Note that we are not affiliated with either of those projects.

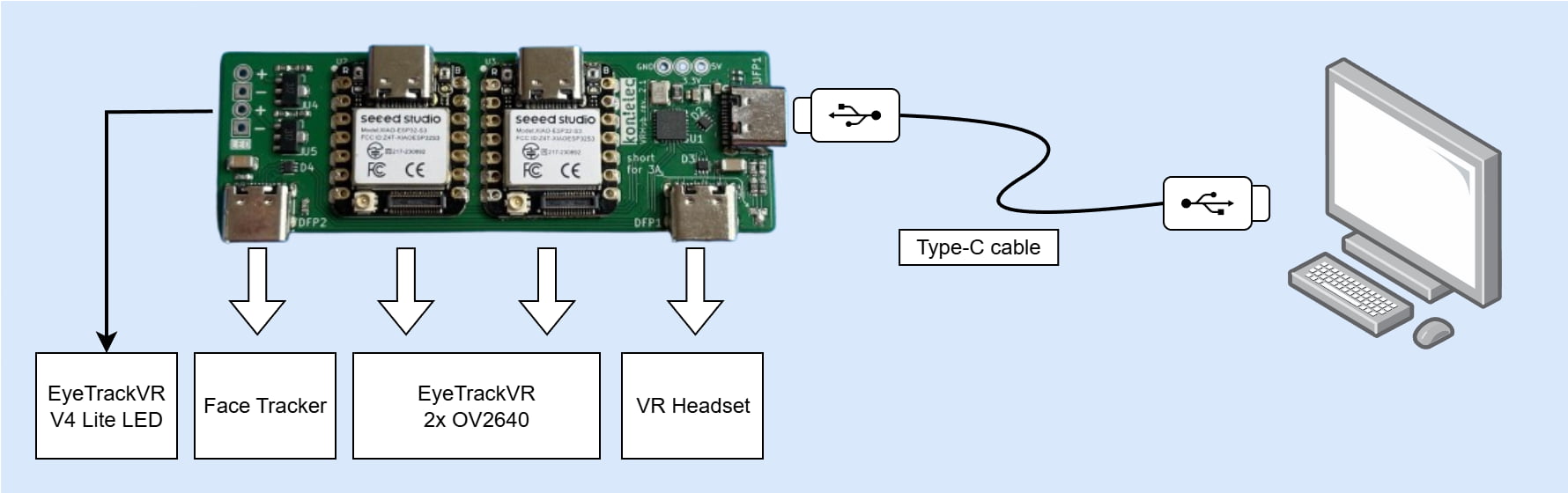

Diagram

This product is currently in development. Samples are available upon request. Please contact kitsune on Discord @kitsu.red for more information.

Features

Host-side Type-C port
2x Type-C downstream ports, 3A max.
2x pads for Xiao ESP32 S3
2x EyeTrackVR V4 Lite LM317L IR LED driver (configured to 9.6mA)

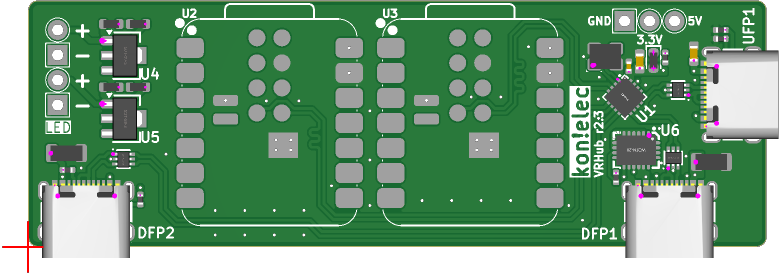

Revision History

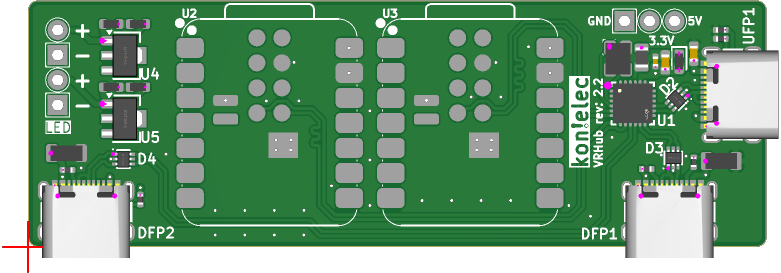

Revision 2.2

Changes

Added a solid silkscreen layer under USB ports for improved durability
Changed both DFP resistor configuration to allow 5V 3A by default
Updated routing for DFP2 to give the data traces more space and better return path, theoretically improved signal integrity
Added vias in the exposed pads of the 2x LED drivers for improved thermals

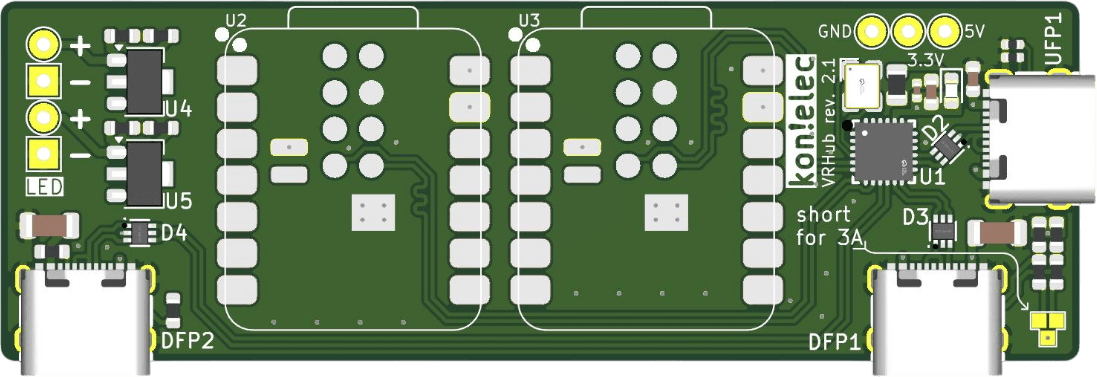

Revision 2.1

Changes

Reduced brightness of power indicator LED
Added pads to increase DFP1 current limit from 500mA to 3A

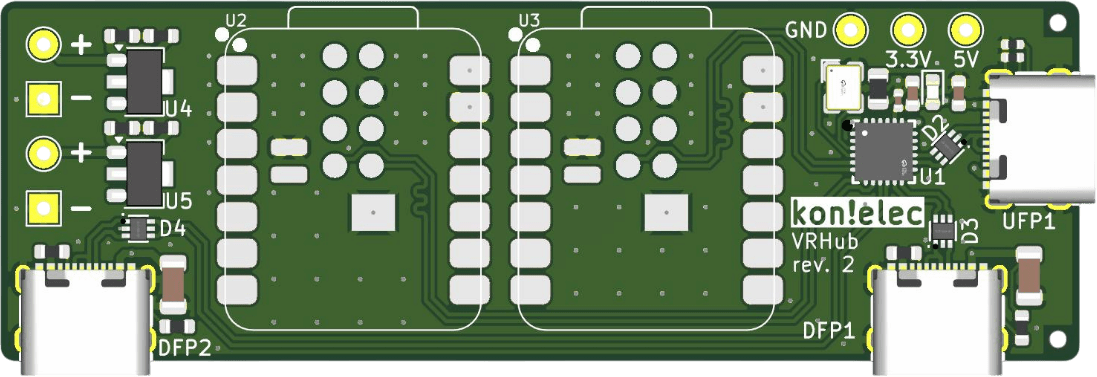

Revision 2.0

First working prototype and public announcement of the project.

Revision 1.0

Failed prototype, not for public release.
